VoIP VM-S1005PED - Switch 5 Port 10/100M unmanaged support PoE in Metal case (72W Power)

Chargement...Chargement...
-17%

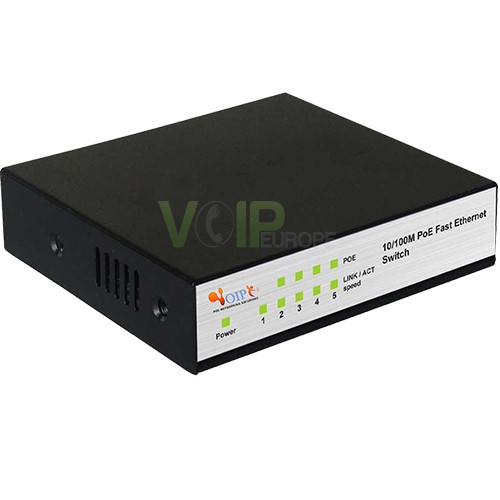

5-port 10/100M unmanaged 4 Port support PoE Switch in Metal case (72W Power) FR-S1005PED

Prix Normal : 59,19 € HT

Votre Prix :49,00 € HT

49,00 € TTC

Economie : 10,19 € - 17%

VM-S1005PED 5-port 10/100M Desktop POE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities. These POE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs).

Disponibilité : Sur commande
Evaluation :
  • 5-port 10/100M unmanaged 4 Port support PoE Switch in Metal case (72W Power) FR-S1005PED

FICHE TECHNIQUE


Description

VM-S1005PED 5-port 10/100M Desktop POE Switch provides the seamless network connection.
 It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities. These POE ports
 can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices
 (PDs). In this situation, the electrical power is transmitted along with data in one single cable
 allowing you to expand your network where there are no power lines or outlets, where you wish to
 fix devices such as APs, IP Cameras or IP Phones, etc.
 FR-S1005PED is easy to install and use. It requires no configuration and installation. With
 desktop design, outstanding performance and quality, the 5-port 10/100 Desktop POE Switch is a
 great selection for expanding your home or office network.

Features

5 × 10/100Mbps Auto-negotiation Fast Ethernet RJ45 ports with 4 port PoE function
(port1-port4)
Supports PoE power up to 30W for each PoE port
Supports PoE power up to 72W for all PoE ports
Supports PoE IEEE802.3af and IEEE802.3at compliant Powered Device (PD)
 Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex
Mode
1K entry MAC address table of the FR-S1005PED with auto-learning and auto-aging
LED indicators for monitoring power, link, activity
External power adapter supply

SPECIFICATIONS

Model VM-S1005PED
Chipset IP175G
Standards
IIEEE 802.3 ； IEEE 802.3u ； IEEE 802.3x
IEEE 802.3af ；IEEE 802.3at ； IEEE802.3az
Network Media (Cable)
10BASE-T: UTP category 5 cable (maximum 100m)
100BASE-T: UTP category 5 cable (maximum 100m)
1000BASE-T: UTP category 5 cable (maximum 100m)
Number of Ports 5 x 10/100Mbps Auto-Negotiation ports
Switching Capacity 1G
LED indicators
10/100/1000M Link
POE POE
Other Power
Transfer Method Store-and-Forward
PoE Power on RJ-45
Power+: ping4 & ping 5
Power-: ping 7 & ping 8
MAC Address Learning Automatically learning, automatically Update
Frame Filtering and Forward Rate
10Mbps: 14880pps,
100Mbps: 148800pps
1000Mbps: 1488000pps
Dimensions (L × W × H) 80*90*21mm
Environment
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing

Type de périphériqueCommutateur - 5 ports
Ports5 x 10/100
Nombre de SFP
Moyenne des revuesAverage Rating 3
