Accueil » Voip PBX » Appliance IPBX » Module Pour Applaiance » Module de 4 ports GSM pour le Zycoo CoVox U50 et U100 Copy
Zycoo

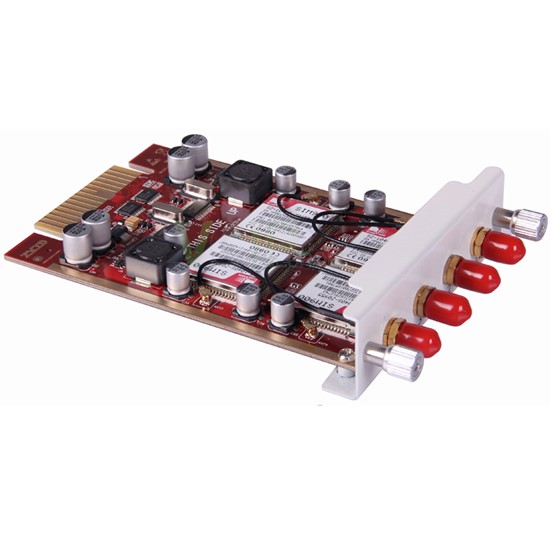

Zycoo Z4GSM - Module de 4 ports GSM pour le Zycoo CoVox U50 et U100 Copy

Chargement...Chargement...
-28%
Module de 4 ports GSM pour le Zycoo CoVox U50 et U100 Copy Z4GSM

Prix Normal : 416,49 € HT

Votre Prix :297,99 € HT

297,99 € TTC

Economie : 118,50 € - 28%

Le module 4 GSM supports CooVox-U50 et CooVox-U100 IPBX Systeme Avec puce IAM, Meditel ou Inwi. Chaqu'une a ligne a un LED sur le module LED(Light-Emitting Diode).

Disponibilité : En Stock
Evaluation :
  • Module de 4 ports GSM pour le Zycoo CoVox U50 et U100 Copy Z4GSM
Description

The 2/4 GSM module supports CooVox-U50/ CooVox-U100 IP Phone System for GSM connection. Each port has one LED(Light-Emitting Diodes).
Designed with SIM900 for global market, SIM900 is a quad-band GSM engine that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz.

Fiche Technique

Model No.

2GSM

4GSM

Number of Quad Band GSM channels per module

2

4

External antennas

2

4

SIM Cards

2 total

4 total

2 externally accessible and hot swappable

2 internally accessible

External power supply required

No

Interoperable modules

4FXO

4FXS

4BRI

1PRI

Supported protocols

Voice (2G)

SMS

Accessibility

Through Asterisk 1.8x



The 2/4 GSM module supports CooVox-U50/ CooVox-U100 IP Phone System for GSM connection. Each port has one LED(Light-Emitting Diodes), which is assembled on the mainboard.
The Red LED indicates port status:
 Solid Red= Module loading successful
 Blink Red= Channel Ringing
If the LED is off, the GSM module is loading failure.


The Red LED indicates port status:
 Solid Red= TE Model
The Green LED indicates port status:
 Solid Green= NT Model
If the LED is off, the module is loading failure.



SIM900 key features

Feature

Implementation

Power supply

Single supply voltage 3.4V-4.5V

Power saving

Typical power consumption is SLEEP mode is 1.5mA(BS-PA-MFRMS=5)

Frequency Bands

SIM900 quad-band:GSM850, EGSM 900, DCS 1800, PCS 1900. The SIM900 can search the 4 frequency bands automatically.

Compliant to GSM Phase 2/2+

GSM class

Small MS

Transmitting power

Class 4(2W) at GSM 850 and EGSM 900

Class 1(1W) at DCS 1800 and PCS 1900

Temperature range

Normal operation: -30-+80 degrees Centigrade







Téléchargements


iconCooVox_GSM_Module Datasheet.pdfTélécharger
