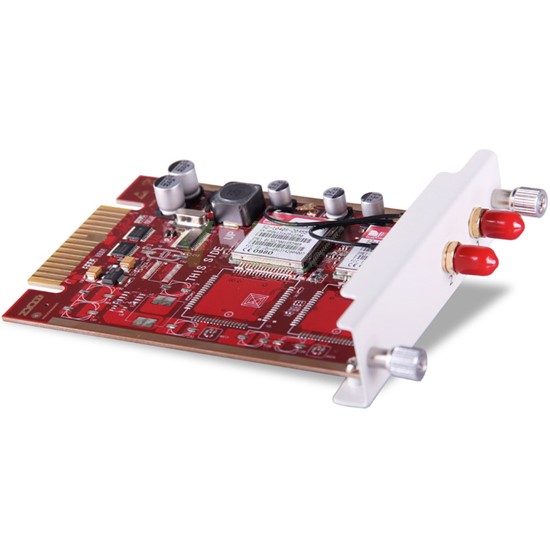

Zycoo Z2GSM - Module de 2 ports GSM pour le Zycoo CoVox U50 et U100
Chargement... Description
Designed with SIM900 for global market, SIM900 is a quad-band GSM engine that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz.
Fiche Technique
|
Model No. |
2GSM |
4GSM |
|
Number of Quad Band GSM channels per module |
2 |
4 |
|
External antennas |
2 |
4 |
|
SIM Cards |
2 total |
4 total 2 externally accessible and hot swappable 2 internally accessible |
|
External power supply required |
No |
|
|
Interoperable modules |
4FXO 4FXS 4BRI 1PRI |
|
|
Supported protocols |
Voice ( SMS |
|
|
Accessibility |
Through Asterisk 1.8x |
|
The 2/4 GSM module supports CooVox-U50/ CooVox-U100 IP Phone
Systemfor GSM connection. Each port has one LED(Light-Emitting Diodes),
which is assembled on the mainboard.
The Red LED indicates port status:
• Solid Red= Module loading successful
• Blink Red= Channel Ringing
If the LED is off, the GSM module is loading failure.
The Red LED indicates port status:
• Solid Red= TE Model
The Green LED indicates port status:
• Solid Green= NT Model
If the LED is off, the module is loading failure.
SIM900 key features
|
Feature |
Implementation |
|
Power supply |
Single supply voltage 3.4V-4.5V |
|
Power saving |
Typical power consumption is SLEEP mode is 1.5mA(BS-PA-MFRMS=5) |
|
Frequency Bands |
SIM900 quad-band:GSM850, EGSM 900, DCS 1800, PCS 1900. The SIM900 can search the 4 frequency bands automatically. Compliant to GSM Phase 2/2+ |
|
GSM class |
Small MS |
|
Transmitting power |
Class 4(2W) at GSM 850 and EGSM 900 Class 1(1W) at DCS 1800 and PCS 1900 |
|
Temperature range |
Normal operation: -30-+80 degrees Centigrade |
-
