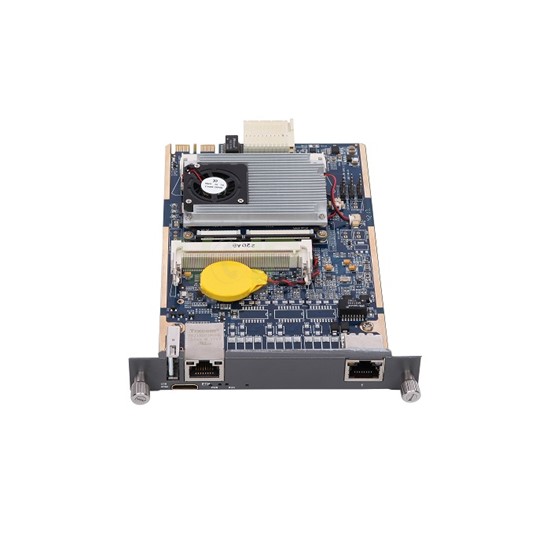

OpenVox VS-ET200X - Module De 1 à 4 acces Primaire E1 pour les passerelles OpenVox VS-GW1600 ou VS-GW2120
Chargement... Description
ET200X Gateway is an open source asterisk-based VoIP Gateway solution for operators and call centers. It is a converged media gateway product. This kind of gateway connects traditional telephone system to IP networks and integrates VoIP PBX with the ISDN seamlessly. With user friendly GUI, customers may easily setup their customized Gateway. Also secondary development can be completed through AMI (Asterisk Management Interface). ‘L’ means that the device has no hardware codec V100 module.
The ET200X Gateway supports 1/2/4 software-selectable T1/E1/PRI interface and supports up to 30/60/120 concurrent calls.
Target Applications
• Connect legacy PBX systems to low-cost VoIP services
• Connect legacy PBX systems to remote sites over private VoIP links
• Connect IP PBX systems to legacy TDM services
• Phased transition from legacy PBX to IP PBX
• Connect virtualized systems to legacy TDM services
• Transcoding by connecting systems using varying codecs
• Lync connectivity to SIP or legacy TDM providers and SIP or Legacy PBX
Technical Specifications
• 1 10/100M Ethernet port
• 1 USB 2.0 port
• 1 HDMI port
• Power: 12W Maximum.
• Power Adapter:12V/2A
• Operation temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Operation environment humidity:10%-90% No condensation
| ET200X Gateway | |||||
| Product Model | ET2001 | ET2002 | ET2004 | ET2001L | ET2002L |
| E1/T1 Port | 1 | 2 | 4 | 1 | 2 |
| Codec & EC Module | yes | no | |||
| Size | 100*162.5mm | ||||
| Weight | 210g | 216g | 226g | 202g | 207g |
System Features
• Available in 1/2/4 port T1/E1, energy efficiency concurrent processing, up to 120 channels
• Signalling: PRI/R2/SS7
• Support up to 24 countries’ standard R2 signalling
• Support new R2 variant
• Simple and convenient configuration via Web GUI
• Codecs support: G.711A, G.711U, G.729A, G.723.1, G.722, GSM
• Support protocols：SIP、IAX、TCP、UDP、RTP、SSH、HTTP、HTTPS
• Support NTP time synchronization and client time synchronization
• Support SSH access for background management, Asterisk CLI command operation
• Open API interface (AMI)
• Support ports group management
• Support custom dialplans
• Echo Cancellation (Octasic® DSP)
• Firmware update by HTTP
• Support call statistics
• Support auto provision
• Support channel status show dynamically
• Support backup/upload configuration file
• Multiple detailed log output
• Support Chinese language
• Automatically reboot
• Compatibility with all kinds of SIP servers, such as Asterisk, Elastix, Freeswitch and other IPPBX platforms
• Available for OEM
• 3-month "No Question Asked" Return Policy, and Two-year Warranty
SIP Features
• Support add, modify & delete SIP Accounts
• SIP registration with Domain
• Support multiple SIP registrations：Anonymous, Endpoint registers with this gateway and this gateway registers with the endpoint
• SIP accounts can be registered to multiple servers
• Combine different SIP Trunks into group
• SIP(RFC3261) compliance
• DTMF: RFC2833, SIP INFO, INBAND
• Support T.38 /Pass-through Fax
Routing
• Flexible routing settings
• Support 512 routing
• Support caller/callee manipulation and filtering
• Trunk group support, Trunk priority management
• Support add, modify & delete routing
• E1/T1 port grouping
• Support Failover
Network Features
• Network type: Static IP and DHCP
• IPv4, UDP/TCP, DHCP, TFTP, SCP
• HTTP/HTTPS/SSH
• Support DDNS
• Support ping & traceroute command on the web
• Support network capture on the web
