Fanvil I31 - Interphone Video IP avec Clavier et Lecteur de Cartes
Chargement... Fiche Technique
Description

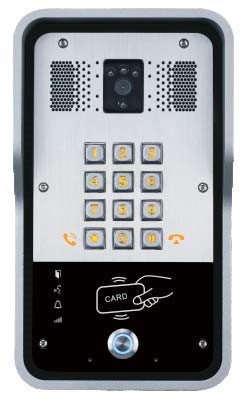

Fanvil I31
Interphone Video IP compact pour une installation intérieure. Ce panneau
extérieur avec prise en charge SIP peut être facilement mis en œuvre avec le
système téléphonique existant basé sur la VoIP. En appuyant sur une touche ou un
ensemble de chiffres sur le clavier numérique intercom envoie l'appel sur le
téléphone de l'employé ou un groupe de personnes qui, après une communication
préliminaire peut donner l'ordre d'ouvrir les portes avec le relais rencontré.
Pavé numérique vous permet de saisir rapidement un code d'accès pour ouvrir la
porte ou composer un numéro spécifique.
Info
Backed by Fanvil’s 10+ years of technology development and product designing, the i31 offers next generation of entry control and monitoring. The i31 combines IP technology with industry standards for access and physical security to deliver a system that improves communication for tenants, guests and visitors.The i31’s flexibility, ease of use and simple installation makes it ideal for enhancing security posture in schools, offices, and other public facilities.
Features
Office School Airport
In-wall Wall-mounted Wall-mounted
In-wall Wall-mounted Wall-mounted
Intelligent Security Video Door Phone – i31
The best choice for SIP Video Door Phone HD
HD
HD
HD Voice
High definition voice using wideband G.722 coding produces clearer sound
quality and extends the frequency range.
Noise Reduction
The embedded processing module reduces environmental noise and
improves voice recognition up to 5 meters (approx. 16 feet).
SIP
SIP
The most popular and compatible standard protocol - SIP - enables delivery of worry free communication and connectivity.
Advanced Protection
Enclosure designed on International
Protection (IP) markings to protect against intrusion – accidental or
Protection (IP) markings to protect against intrusion – accidental or
intentional - waterproofed to IP65 and anti-collision up to IK10.
Anti-tamper
Alarm sounds if/when cover is removed from the housing and reports the action to the control center.
HD Video
The 1280x720p (720p – progressive scan) camera produces vibrant highquality
HD video and captures motion effortlessly.
Wide Range temperature
adaptability
The system design adapts to operating under various environmental conditions and temperatures
(supports temperatures ranging from -40 to +70 Celsius.)
Multi-function
The system is capable of performing multiple functions, i.e. video intercom and door phone and single device paging, and can be configurable with additional features.
Caractéristiques
Soutien G.711, G.729, etc codec voix interphone;
Soutien SIP 2.0 (RFC3261) et le protocole RFC connexe;
Fonction (balayage ou communication) déverrouiller;
message de congé de visiteurs;
Appeler l'extension intérieure pour une conversation bidirectionnelle;
Logiciel mise à niveau sur la ligne;
WEB gestion à distance de dysfonctionnement ou de l'état du terminal.
Fonction (balayage ou communication) déverrouiller;
message de congé de visiteurs;
Appeler l'extension intérieure pour une conversation bidirectionnelle;
Logiciel mise à niveau sur la ligne;
WEB gestion à distance de dysfonctionnement ou de l'état du terminal.
Generic
• 2 SIP Lines
• PoE Enabled
• Full-duplex speakerphone (HF)
• Numeric keypad (Dial pad or Password input)
• Intelligent DSS Keys (Speed Dial/intercom etc)
• Integrated Noise Reducation with dual MICs
• Omnidirectional pickup
• 1 embedded indoor switch interface
• 1 embedded door switch relay
• 2 embedded short-circuit output relays(optional)
• Embedded anti-dismantlement alarm
• External Power Supply
• Record voice and video during calls(optional)
• Status indication with icons: door opened, talking, incoming calls, network on/SIP registration on
• Access control-by call, code, RFID card, indoor switch
• All in ONE-door access, intercom and paging service
• Dusty free on the stainless panel,watter proof followed by IP65,and mechanical design for IK10 approval, CE/FCC certifications
• Wall-mount/In-Wall installation
Call Features
• Voice/video Intercom
• Speed Dial(speed dial key)
• Auto-Answering (per line)
• Voice Message (on server)
• Barge in and calls switched automatically
• Local 3-way Conference
• Hotline Phone Features
• High Quality video calls
• Support SIP 2.0 and related RFCs
• Call log (dialed/incoming/missed)
• Open Door Logs
• Support RFID Card issues (1999 entries)
• Programmable DSS keys
• Network Time Synchronization
• Action URL / Active URI Audio
• Wideband CODEC: G.722
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, iLBC, AMR
• Full-duplex Acoustic Echo Canceller (AEC) – Hands- free Mode, 128ms tail-length
•Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out of Band (RFC2833) / SIP INFO
• Omnidirectional pickup: pickup distance 5 m
Video
• Video codec: H.264 / H.263
• Image codec: JPEG/PNG/BMP/GIF
• Video format: MP4/3GP/FLV
• Video call resolution: QCIF / CIF / VGA / 4CIF / 720P
• Bandwidth selection: 64kbps~4Mbps
• Frame rate selection: 10~30fps Networking
• 802.3af PoE
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / PPTP / IPSec
• VLAN: 802.1p/q
• QoS: DSCP Protocols
• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069
Deployment & Maintenance
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP
• Web Management Portal
• Web-based Packet Dump
• Configuration Backup/Restore
• Entry Log Export
• Access Table Export/Import
• Firmware Upgrade
• Syslog (include Open Door Log) Physical Specifications
• Keypad: 13 keys, including 12 Standard Phone Digits keys
1 Hands-free key or DSS Keys (Speed Dial)
• 1 10/100/1000BASE-T RJ45 Ethernet interface, Auto- MDIX
• PoE: 802.3af, Class 3
• Main Chipset: Freescale quard cores 1GHz CPU
• SDRAM：1GB DDR3
• Flash：4GB
• TF card：embedded 32GB
• Camera: 1280 x 760, CMOS
• Passive Switch(short-circuit output): Normally Open and Normally Closed highest at 30V/1A AC/DC
• Active Switched Output: 12V/700mA DC
• RFID/IC Card：EM4100(125kHz),MIFARE ONE(13.56MHz)，NFC(optional)
• Audio Amplifier: 3W
• Cables: CAT5 or better
• Power Supply：12V±15%/1A DC or PoE
• Shell Material: Aluminum Cover and Cast-Aluminum back case
• Protection level: IP65 and IK10
• Storage Temperature:-40~70℃
• Working Humidity: 10~90%
• Overall Dimension: 223 x 130 x 74mm (W x H x L)
• Package Weight:1.85KG Intelligent Security Video Door Phone – i31 Compatibility
