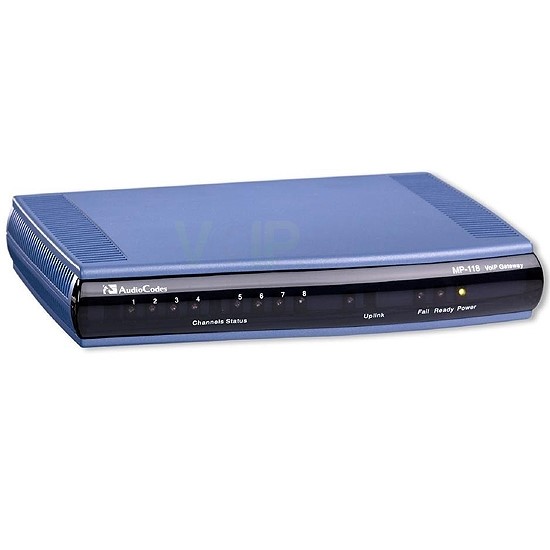

AudioCodes MP118/8S/SIP - Passerelle MediaPack MP118 FXS 8 ports
FICHE TECHNIQUE
Interfaces | |
Voice Ports |
8 Ports |
Telephone Interfaces |
FXS, RJ11 |
Lifeline |
Automatic cut through of a single analog line |
Network Interface |
10/100 BASE-TX, RJ45 |
Indicators |
Channel status and activity LEDs |
Voice, Fax, Modem | |
Voice over Packet Capabilities |
G.168-2004 compliant Echo Cancellation, VAD, CNG, Dynamic programmable Jitter Buffer, modem detection and auto-switch to PCM |
Voice Compression |
G.711, G.723.1, G.726, G.729A |
Fax over IP |
T.38 compliant, Group 3 fax relay up to 14.4 kbps with automatic switching to PCM or ADPCM |
QoS |
Diffserve, TOS, 802.1 P/Q VLAN tagging |
IP Transport |
RTP/RTCP per IETF RFC 3550 and 3551 PPPoE, ThruPacketTM (aggregated RTP streams of several channels for saving network bandwidth) |
Signaling | |
Signaling |
FXS, FXO Loop-start |
In-band Signaling |
DTMF (TIA 464B, User-defined and call progress tones |
Control |
MGCP (RFC 2- 05), H.323 (V4), SIP (RFC 3261) |
Provisioning |
BootP, DHCP, TFTP and HTTP for Automatic Installation, Remote management using Web browser, EMS (Element Management System), Syslog support, RS-232 for basic configuration, Voice Menu using touch tone phone for basic configuration |
Security | |
Media |
SRTP |
Control |
H.235, IPSEC, TLS/SIPS |
Management |
HTTPS, Access List, IPSEC |
Physical | |
Power |
100-240 V AC/50-60 Hz or -48V DC |
Environmental |
Operational: 5 to 40o C 41 to 104o F, Storage: -25 to 85o C -13 to 185o F, Humidity: 10 to 90% non-condensing |
Dimensions (HxWxD) |
42x172x220mm |
Mounting |
Rack mount, Table top, Wall mount |
Additional Features | |
Message Waiting Indication |
Applying 100V DC on line for lighting bulb in handset |
High Availability |
PSTN Fallback: Support of PSTN fallback due to Power failure of if the IP connection is down or customer defined if IP QOS thresholds, Supported in all ports of Mixed FXS/FXO and in first port of MP-114/FXS and MP- 118/FXS using special Lifeline cable, Stand Alone Survivability (SAS): Supports SAS of up to 30 SIP users (UA) per MediaPack |
Short and Long Haul |
REN3: Up to 9Km (24 AWG line) |
Caller ID |
Bellcore GR-30-CORE Type 1 using Bell 202 FSK modulation, ETSI Type 1, NTT, Denmark, India, Brazil, British and DTMF ETSI CID (ETS 300-659-1) |
Polarity Reversal / Wink |
Immediate or smooth to prevent erroneous ringing |
Metering Tones |
12/16 KHz sinusoidal bursts, Generation on FXS |
Distinctive Ringing |
By frequency (15-100 Hz) and cadence patterns |
Message Waiting Indication |
DC voltage generation (TIA/EIA-464-B), V23 FSK data, Stutter Dial Tone |
Outdoor Protection: |
Over-voltage protection and surge immunity |
-
