OpenVox IX210 - IPPBX 2U Ecran LCD pour les PME

Chargement...Chargement...
-13%
IPPBX 2U Ecran LCD pour les PME IX210

Prix Normal : 2 045,99 € HT

Votre Prix :1 781,49 € HT

1 781,49 € TTC

Economie : 264,50 € - 13%

IX210 OPENVOX est une solution complète basée IPPBX-open source Asterisk pour les PME. À un prix abordable.

Disponibilité : Sur commande
Evaluation :
  • IPPBX 2U Ecran LCD pour les PME IX210
  • /Images/IX210-a.jpg
Fiche Technique


Fiche Technique


IX210 is an upgrade version of IX132, an open source asterisk-based complete IPPBX solution for SMB. With affordable price, users may easily setup their customized IPPBX.

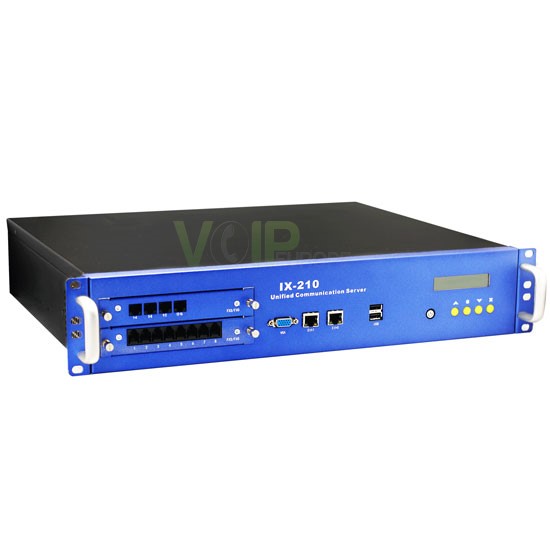

OpenVox IX210 is a standard 19" 2U appliance. It allows users to integrate up to 2 pieces of OpenVox PCI-E telephony interface cards, with any combinations of analog, BRI, PRI, GSM or transcoding interfaces. The optional hardware RAID 1 support provides better data backup for your system. The optional HDD case provides the possibility for hot plug function to the storage device. When RAID1 is installed, thus users can see the status of the storage devices from a GUI and then simply replace a backup HDD whenever needed without opening the appliance.IX210 has a design of LCD. It's convenient for you to check the IP address, System Load and so on. What's more, the IX210 provides optional redundant power supply.

The IX210 supports comprehensive protocol processing, including SIP, H.323 protocols in IP side and BRI, PRI, SS7, GSM and some protocols transcoding in CPE. Taking the full advantages of open source platform, the IX210 will be preloaded with Elastix®, PBX in a FlashTM, FreePBX or trixbox® IPPBX software.

Technical Specifications:

CPU: 1.86GHz Intel Atom Dual core D2550
1 M L2 cache, 64 bit instruction
DRAM: 4 GB DDR3 SDRAM,
Storage: 1 SATA slot, 1 mSATA Socket
2 USB 2.0 Ports
2 Ethernet Ports (1000Mbps speed)
2 PCIe sockets for voice cards and other expansion
1 mini PCI-E socket for extension
16 Mbit flash for AMI BIOS
Voltage range :100V/220V AC supply
1 VGA port (DB15) for display interface
Header for LPC bus (use for flash recovery or I/O expansion)
Low EMI Emission level and high Electro Magnetic Susceptibility
Rack/Wall Mountable
Firmware: AMI_UEFI BIOS
LCD
Dimension: 44cm ×8.8cm ×37.2cm
Weight: 5200g (telephony cards not included)
Software & Platform:

Elastix®, trixbox®, PBX in a FlashTM, FreePBX
OpenVox Telephony Cards Options:

A400E/810E/1610E/2410E
B200E/400E
D130E/230E/430E
G400E/410E
Except A400E, B100E, G400E and G410E, all compatible cards can be applied together with EC module.

*Only two A2410E can be installed in IX210. For other configuration, please contact our sales manager for assistance.


FEATURES

Modular Design for Telephony Cards Connection
Intel Atom Dual core D2550(1.86GHz)
Optional Hardware RAID 1 Support
Optional Pre-Loaded Open Source IPPBX System
Combination of analog, BRI, PRI, GSM or transcoding interfaces
Available for OEM
Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
One touch record
OpenVPN
Phone Provisioning
PIN User(PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Ring Group
Route by Caller ID
Skype Integration (Sky2Sip)
SMS to Mail/Mail to SMS
Speed Dial
Static Route
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Two Year Warranty

Téléchargements


iconIX210 Quick Start Guide.pdfTélécharger
iconIX210 Datasheet EN.pdfTélécharger
