General

Device Type

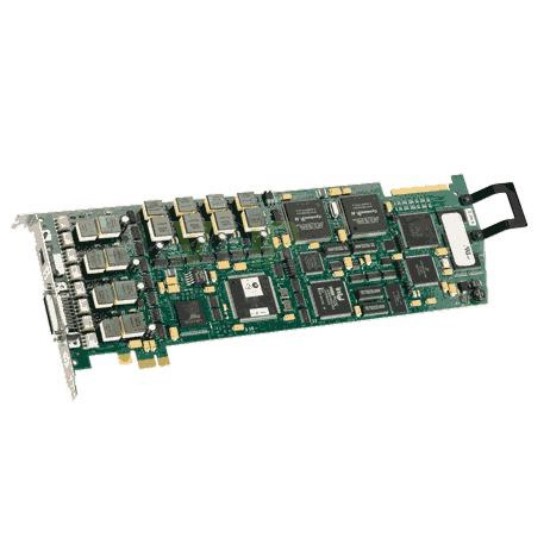

Voice/fax board

Enclosure Type

Plug-in card

Approximate Width

0.8 in

Approximate Depth

13.3 in

Approximate Height

3.9 in

Localization

Europe

Modem

Interface Type

PCI

Connectivity Technology

Wired

Processor

Intel 80C186 34.8 MHz

Protocols & Specifications

ITU V.17, ITU T.30, ITU T.4

Data Compression Protocol

MH, MMR, MR

Max Fax Transfer Rate

14.4 Kbps

Analog Ports Qty

4

Features

DTMF decoding

Expansion / Connectivity

Expansion Slots Total (Free)

1 ( 1 ) x CT Bus

Interfaces

4 x phone line - RJ-11

Compatible Slots

1 x PCI

Miscellaneous

MTBF

274,000 hour(s)

Compliant Standards

CISPR 24, EN 60950, EN55022, VCCI Class A ITE, EN55024, CISPR 22, CSA 22.2 No. 60950, DOC, ICES-003 Class A, ULC, RoHS, UL 60950-1, IEC 60950-1

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

122 °F

Humidity Range Operating

8 - 80%
