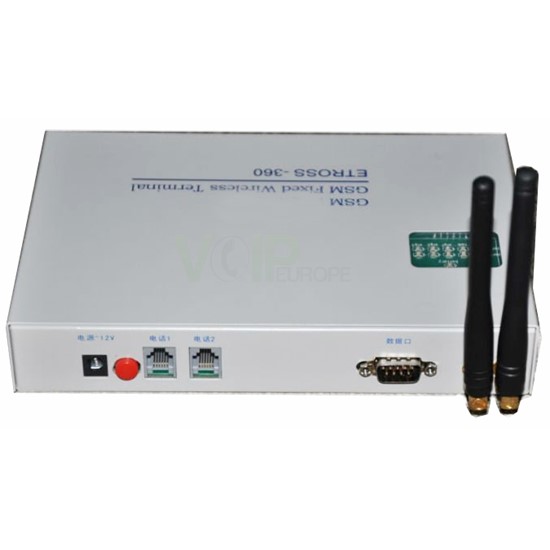

VoipEurope FWT-E360 - Passerelle à 2 canaux GSM (GSM 900/1800 MHz) avec 1 interface FXS
Chargement...
FICHE TECHNIQUE
CAPABILITIES | |
Scalability | 2 mobile channel 2 SIM |
Advanced | Network / Provider lock PIN code restriction Toll restriction |
Echo cancellation | Configurable |
Call features | Caller ID control (on outgoing calls only) Call hold, call waiting, call duration limitation Immediate dialing |
PROTOCOLS | |
Mobile | GSM: Dual band (900/1800 800/1900 MHz) |
Data port | RS232, AT command compatible |
SYSTEM MANAGEMENT | |
DTMF management SMS management | |
PHYSICAL PARAMETERS | |
Size (W × H × D ) | 64 × 33.4 × 165 mm |
Power supply | 100–240 VAC, 50–60 Hz |
Supply voltage | 9 VDC, 1 A |
Consumption | 6 W |
Connection specifications | |
Telephony | RJ11-C (pin2,3-TIP, pin4, 5-RING) |
Antenna | SMA |
Line loop current | 40 mA max |
Line supply voltage | -48 VDC ± 10 % |
Line impedance | 600 Ohm |
Dial tone | 400 Hz ± 1 % |
Ring generator | 42 Vrms/25 Hz |
Line signaling | DTMF |
Disconnect signal | Reverse polarity, Pulse drop |
ENVIRONMENTAL CONDITIONS | |
Temperature | 0 °C to +40 °C |
CERTIFICATES | |
CE, Safety |
