Fanvil

Téléphone IP pour centre d'appel avec écran couleur, 2 lignes SIP PoE, BROADCOM chipset

Sur commande

Prix Normal : 128,00 € HT

Votre Prix :99,00 € HT

99,00 € TTC

FICHE TECHNIQUE

SpecificationTo the top

Generic

• 2 SIP Line

• HD Voice

• POE Enable or Optional External Power Supply

• 2.8" color screen

• Headphone(HP) mode (EHS support for Plantronics headsets)

• Economical and Environmental friendly package

• Industrial Standard Certifications: CE/FCC

Call Features

• Call out / answer / reject

• Mute / Unmute (microphone)

• Call Hold / Resume

• Call Waiting

• Intercom

• Caller ID Display

• Call Forwarding (Always/Busy/No Answer)

• Call Transfer(Attended/Unattended)

• Call Parking / Pick-up (depending on server)

• Redial/Auto-Redial

• Do-Not-Disturb

• Auto-Answering

• Voice Message (on server)

• Local 3-way Conference

• Hot Line

• Hot-Desking

Phone Features

• Phonebook (500 entries)

• Remote Phonebook (XML/LDAP)

• Call log (100 entries, in/out/missed)

• Black/White List Call Filtering

• Voice Message Waiting Indication (VMWI)

• Programmable Soft keys

• Network Time Synchronization

• Action URL / Active URI

• Multi-language support in screen and web UI: English, Chinese(Traditional/Simplified), Japanese, Russian, Italian, Turkish, Germany, Dutch, Spanish, Hebrew, Polish, French etc.

Audio

• Wideband ADC/DAC 16KHz Sampling

• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB

• Wideband CODEC: G.722

• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)

• Packet Loss Concealment (PLC)

• Dynamic Adaptive Jitter Buffer up to 300ms

• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

• 10/100Mbps Ethernet, dual bridged port for PC bypass

• IP Configuration: Static / DHCP / PPPoE

• Network Access Control: 802.1x

• VPN: L2TP (Basic Unencrypted) / OpenVPN

• VLAN

• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS

• RTP/RTCP/SRTP

• STUN

• DHCP

• PPPoE

• 802.1x

• L2TP (Basic Unencrypted)

• OpenVPN

• SNTP

• FTP/TFTP

• HTTP/HTTPS

• TR069

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069

• Web Management Portal

• Web-based Packet-dump

• Configuration Export / Import

• Phonebook Import/Export

• Firmware Upgrade

• syslog

Physical Specifications

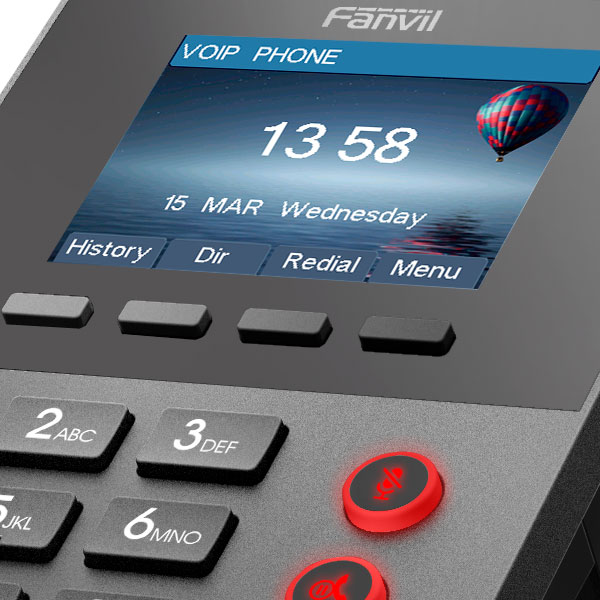

• LCD: 2.8 inch (320x240) color-screen

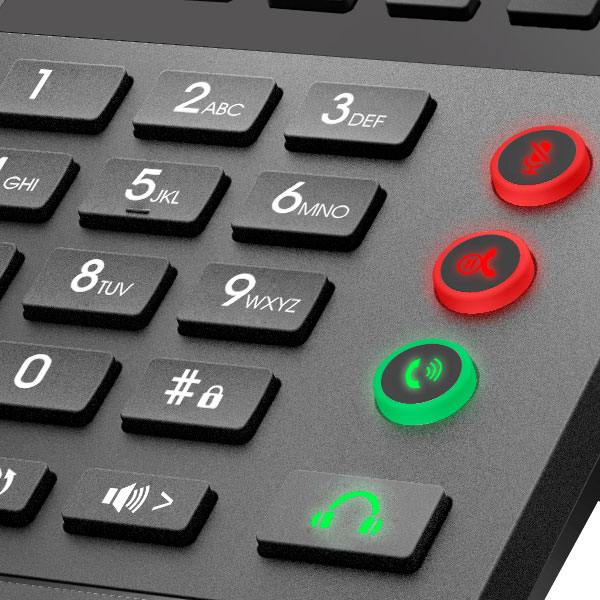

• Keypad: 23 keys, including

               4 Soft-keys

               3 Function keys

               12 Standard Phone Digits keys

               2 Volume Control keys, Lower/Increase(Left/Right)

               1 Volume Select key, (Down)

               1 Headset key

• 1.5M CAT5 Ethernet Cable x1

• 3.5mm port x2: Headset x1, Foot pedal x1

• RJ9 port x2: Headset x1, Monitor earphone x1

• RJ45 Ethernet Port x2: Network x1 (802.3AF POE Class 1 Enabled),

                                   PC x1 (Bridged to Network)

Main Chipset: Broadcom

• DC Power Input: 5V / 0.6A

• Power Consumption: Idle – 0.9~1.6W, Peak – 1.6~2.5W

• Working Temperature: 0~40℃

• Working Humidity: 10~65%

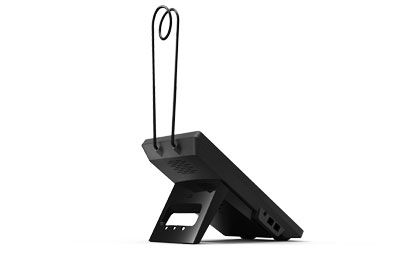

• Back Rack x1: Desktop Stand

• Color: Black

• Gift Box Dimensions: 197x110x62mm (L x W x H)
